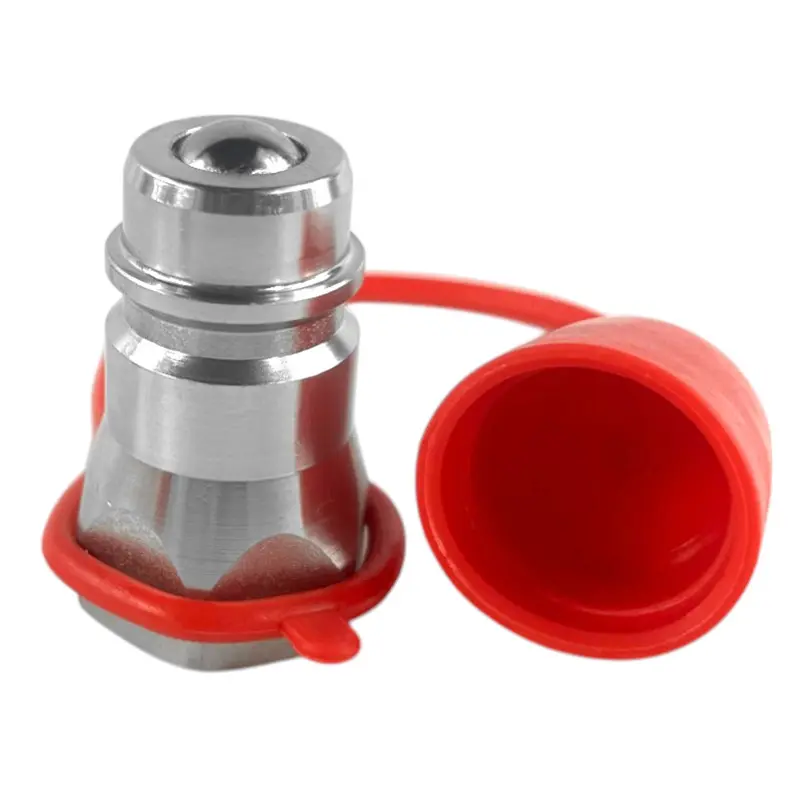

1/2″ Ag Hydraulic Quick Connect Male Coupler, Ball Valve, 1/2″ NPT Thread

1/2″ ISO 5675 Male Hydraulic Quick Coupler – 1/2″ NPT, Ball Valve, 3600 PSI

SKU: AG12M-08N-B

The AG12M-08N-B Male Quick Coupler is a heavy-duty hydraulic connector designed for agriculture, construction, and logging applications. It features a 1/2” NPT male port and is fully interchangeable with ISO 5675 Pioneer-style couplers, as well as 1/2” body ISO 7241-A standard couplings.

With a ball valve design and hardened steel body, this coupler offers secure, high-pressure connections, ensuring leak-free hydraulic performance in tough environments.

Key Benefits & Features

• ISO 5675 & ISO 7241-A Standard – Compatible with all Pioneer-style quick couplers
• Heavy-Duty Hardened Steel – Built for long-lasting durability
• High-Pressure Performance – Rated for 3600 PSI
• Superior Flow Efficiency – Supports 7.9 GPM nominal flow, with a maximum flow of 14.5 GPM
• Ball Valve Design – Ensures secure hydraulic sealing
• Easy Connection & Disconnection – Manual sleeve locking mechanism for secure coupling
• High-Temperature Resistance – Buna-N seals withstand up to 250°F
• Compact & Lightweight – Designed for efficient installation

Applications

• Agriculture & Farming Equipment
• Construction Machinery
• Logging & Forestry Equipment
• Hydraulic Implements & Attachments
• Skid Steers & Loaders

Specifications

• ISO Standard: 5675 / 7241-A
• Thread Type: NPT
• Thread Size: 1/2″
• Body Size: 1/2″
• Max Operating Pressure: 3,600 PSI
• Nominal Flow Rate: 7.9 GPM
• Maximum Flow Rate: 14.5 GPM
• Burst Pressure: 23,000 PSI (Coupled)
• Locking Mechanism: Sleeve with radial locking balls
• Valve Type: Ball Valve
• Material: Hardened Steel
• Sealing Type: Buna-N

Weight & Dimensions:

• Weight: Approx. 0.21 lbs
• Dimensions: 3″ x 3″ x 2″

Interchangeable With:
