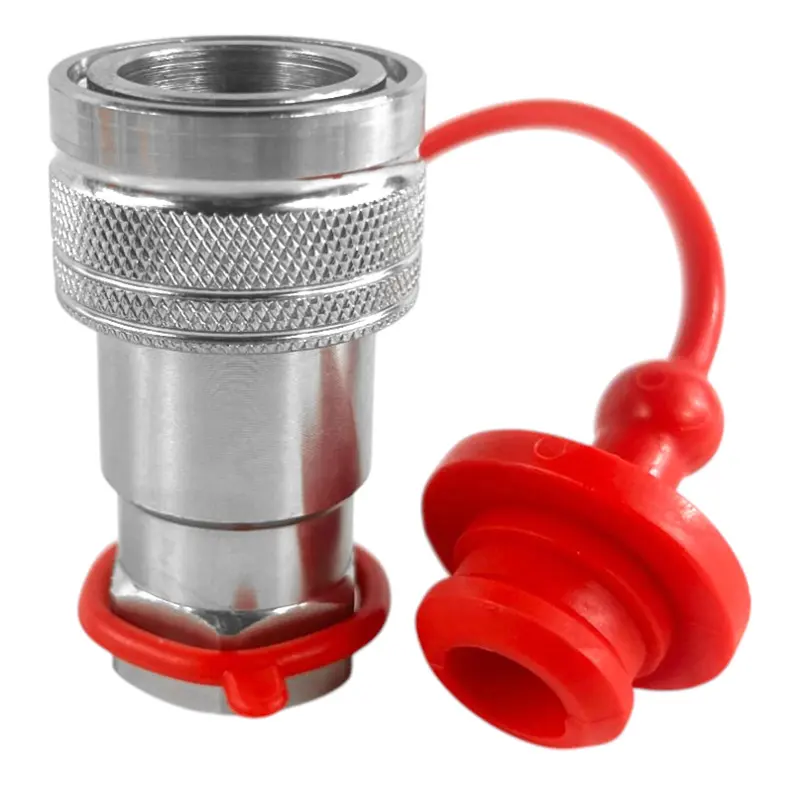

1/2″ Female Agricultural Hydraulic Quick Connect Coupler – 5/8″ SAE ORB Thread
Interchangeable with ISO 5675 / Pioneer-Style Couplers
SKU: AG12F-10S
This 1/2″ female hydraulic quick connect coupler is designed for use in agriculture, construction, and logging applications. It is fully interchangeable with all 1/2″ body ISO 5675 series / Pioneer-style couplers, including ball seat valve, poppet seal, and ISO 7241-A couplers.
Key Features & Benefits:
- Universal Compatibility – Works with ISO 5675 series / Pioneer-style couplers.
- High Flow & Pressure Ratings – Supports a nominal flow rate of 12 GPM and maximum flow of 24 GPM.
- Durable Construction – Made from hardened steel for long-lasting performance.
- Heavy-Duty Performance – Rated for 3,600 PSI working pressure and a 23,000 PSI burst pressure (coupled).
- Secure Connection – Poppet seal ensures leak-free operation under pressure.
- Thread Size: 5/8″ SAE (7/8-14 Female ORB Thread), also known as Dash -10.
Interchangeable With:
| Manufacturer | Female Coupler |
|---|---|
| SUMMIT | AG12F-10S |
| Parker 4000 Series | 4050-16P |
| Safeway S20 Series | S25-16P |
| Faster NV/NS Series | NV 12-58SAE F |
| Dixon AG Series | 4AGOF5-PV |
Compatible Bobcat® Models (2001 or Older):
- 543, 534B, 631, 632, 641, 642, 642B, 643, 732, 741, 742, 743, 743B, 843, 843B
What’s Included?
- 1 x 1/2″ Female Hydraulic Quick Connect Coupler
Upgrade your hydraulic connections with this reliable and heavy-duty coupler, ensuring seamless compatibility and top-tier performance in demanding applications.
