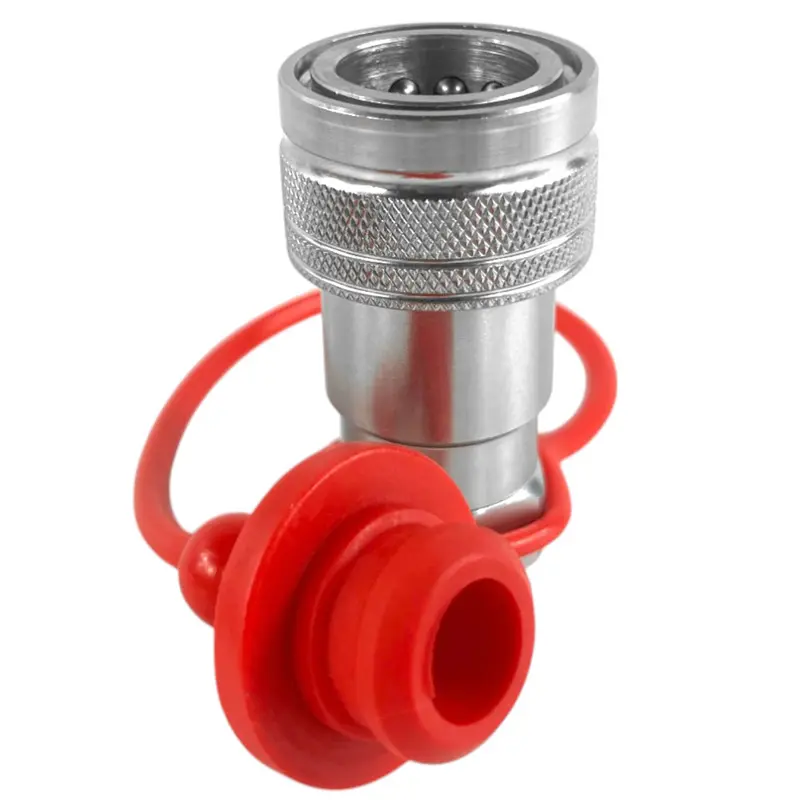

1/2″ ISO 5675 Hydraulic Quick Coupler – Female, 1/2″ NPT, Ball Valve
SKU: AG12F-08N-B
The AG12F-08N-B is a heavy-duty female hydraulic quick coupler, designed for agriculture, construction, and logging applications. It is interchangeable with ISO 5675 / Pioneer-style quick couplers, including ball seat valve, poppet seal, and ISO 7241-A couplers. This coupler ensures a secure, leak-free connection, making it ideal for high-performance hydraulic systems.
Key Features & Benefits
- ISO 5675 & ISO 7241-A Compatible – Ensures seamless connection with Pioneer-style couplers
- Hardened Steel Construction – Provides superior strength and durability
- Ball Valve Design – Reduces fluid loss and ensures consistent sealing
- High-Pressure Rated – Handles 3,600 PSI operating pressure
- Optimized Flow Rate – 7.9 GPM nominal, 14.5 GPM max flow
- Corrosion Resistant Finish – Protects against wear and environmental damage
- Interchangeable with Industry-Standard Couplers – Compatible with multiple brands
Applications
- Tractors & Agricultural Equipment
- Construction & Heavy Machinery
- Forestry & Logging Equipment
- Hydraulic Implements & Attachments
Specifications
- ISO Standard: 5675 / 7241-A
- Thread Type: NPT
- Thread Size: 1/2″ NPT
- Body Size: 1/2″
- Valve Type: Ball Valve
- Max Operating Pressure: 3,600 PSI
- Nominal Flow Rate: 7.9 GPM
- Maximum Flow Rate: 14.5 GPM
- Burst Pressure: 23,000 PSI (Coupled)
- Locking Mechanism: Sleeve with radial locking balls
- Material: Hardened Steel
Interchangeable With:
| Manufacturer | Female Coupler |
|---|---|
| SUMMIT | AG12F-08N-B |
| Parker 4000 Series | 4050-4 |
| Safeway S20 Series | S25-4 |
| Faster NV/NS Series | NS 12 NPT F |
| Stucchi IR Series | 800001004, F IR12 NPT |
| Dixon AG Series | 4AGF4 |
What’s Included?
- 1 x Female 1/2” Body Hydraulic Quick Coupler (1/2” NPT, Ball Valve)
