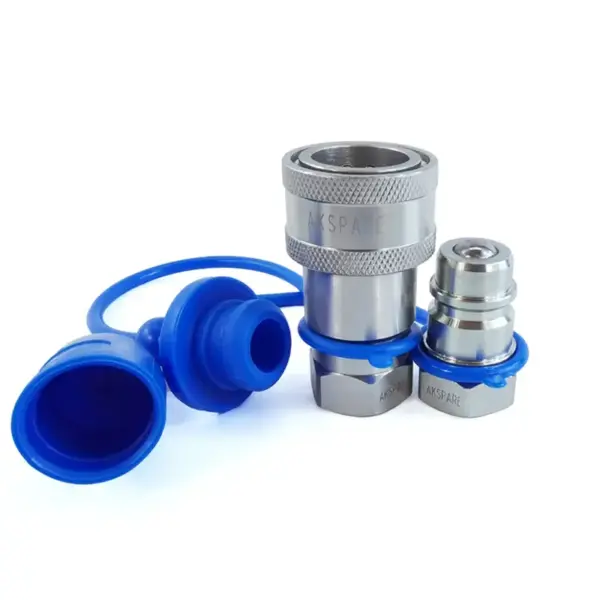

1/2″ ISO 5675 Hydraulic Quick Coupler Set – 1/2″ NPT, Ball Valve, 3600 PSI
SKU: AG12-08N-B-SET
The AG12-08N-B-SET is a heavy-duty hydraulic quick coupler set, including both a male and female coupler, designed for use in agriculture, construction, and logging. This set is interchangeable with all 1/2” body ISO 5675 / Pioneer-style couplers, including ball seat valve, poppet seal, and ISO 7241-A standard couplers.
Constructed from hardened steel, these couplers offer high-pressure resistance, durability, and reliable fluid transfer with a ball valve design for leak-free operation.
Key Benefits & Features
- ISO 5675 & ISO 7241-A Compatible – Works with all Pioneer-style quick couplers
- Durable Hardened Steel Construction – Long-lasting performance in tough environments
- High-Pressure Rating – 3600 PSI operating pressure
- Optimized Flow – 7.9 GPM nominal flow, 14.5 GPM max flow
- Ball Valve Design – Reliable sealing mechanism for efficient hydraulic transfer
- Quick & Secure Connection – Radial locking balls for strong attachment
- High-Temperature Resistance – Buna-N seals withstand up to 250°F
- Includes PVC Dust Cap & Plug – Protection from contaminants
Applications
- Tractors & Farm Equipment
- Construction & Heavy Machinery
- Forestry & Logging Equipment
- Hydraulic Implements & Attachments
Specifications
- ISO Standard: 5675 / 7241-A
- Thread Type: NPT
- Thread Size: 1/2″ NPT Male & Female
- Body Size: 1/2″
- Valve Type: Ball Valve
- Max Operating Pressure: 3,600 PSI
- Nominal Flow Rate: 7.9 GPM
- Maximum Flow Rate: 14.5 GPM
- Burst Pressure: 23,000 PSI (Coupled)
- Locking Mechanism: Sleeve with radial locking balls
- Material: Hardened Steel
- Sealing Type: Buna-N
Weight & Dimensions:
- Weight: Approx. 1 lb
- Dimensions: 5″ x 4″ x 3″
Interchangeable With:
| Manufacturer | Male Coupler | Female Coupler |
|---|---|---|
| SUMMIT | AG12M-08N-B | AG12F-08N-B |
| Parker 4000 Series | 8010-4 | 4050-4 |
| Safeway S20 Series | S71-4 | S25-4 |
| Faster NV/NS Series | NS 12 NPT M | NS 12 NPT F |
| Stucchi IR Series | 800001005 (M IR12 NPT) | 800001004 (F IR12 NPT) |
| Dixon AG Series | AG4F4 | 4AGF4 |
What’s Included?
- 1 x Male 1/2” Body Hydraulic Quick Coupler (1/2″ NPT, Ball Valve)
- 1 x Female 1/2” Body Hydraulic Quick Coupler (1/2″ NPT, Ball Valve)
- 1 x PVC Dust Plug
- 1 x PVC Dust Cap
