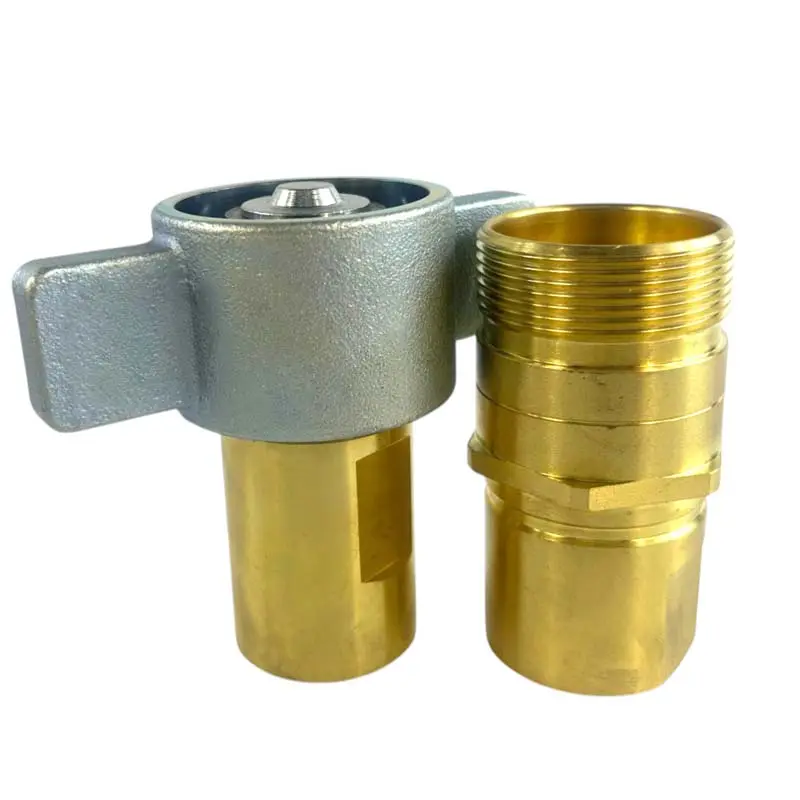

1″ Wet-Line / Wing Nut Hydraulic Quick Coupler Set – 1″ NPT (Male & Female)
SKU: 4100-16N-SET
The 1″ Wet-Line / Wing Nut Quick Coupler Set is engineered for heavy-duty hydraulic applications that demand secure, leak-resistant connections under pressure with minimal fluid loss. These couplers are commonly used in dump trailers, live bed trailers, mobile drilling rigs, sand spreaders, oil well equipment, and other industrial applications.
This set includes both a male and a female coupler, providing a robust and reliable hydraulic connection solution.
Key Features & Benefits
- Brass Body Construction – Prevents corrosion, ensuring long-lasting performance
- Heavy-Duty Steel Sleeve & Wing Nut – Provides secure locking and durability
- Nitrile Seal with Teflon Backup – Enhances leak resistance and longevity
- High Pressure Capacity – Rated for 3,000 PSI working pressure
- Optimized Flow Rate – Nominal flow of 55 GPM
- 1″ NPT Female Pipe Thread – Standard threading for easy integration into existing systems
Applications
- Dump Trailers
- Live Bed Trailers
- Mobile Drilling Rigs
- Sand & Salt Spreaders
- Oil Well Equipment
- Heavy Equipment
Specifications
- Body Size: 1″
- Thread Type: NPT
- Thread Size: 1″
- Max Operating Pressure: 3,000 PSI
- Nominal Flow Rate: 55 GPM
- Seal Type: Nitrile with Teflon Backup
- Locking Mechanism: Wing Nut
- Material: Brass body with steel sleeve
Interchangeable With:
| Manufacturer | Male Coupler | Female Coupler | Set |
|---|---|---|---|
| SUMMIT | 4100M-16N | 4100F-16N | 4100-16N-SET |
| Parker 6100 Series | 6105-16 | 6125-16 | 6100-16 |
| Eaton Aeroquip 5100 Series</strong > | 5100-S4-16B | 5100-S5-16B | 5101-16B |
| Dixon W Series | W8F8-B | 8WF8-B | — |
| Faster FB Series | FB 16/1 NPT M 5 | FB 16/1 NPT F 5 | — |
| Snap-Tite 78 Series | B78N16-16F | B78C16-16F | — |
| Stucchi W Series | 100610116 N51WS-16-16 NPT | 100610016 C51WS-16-16 NPT | — |
| DNP | VFF-16-16-N-NPT | VFF-16-16-C-NPT | — |
What’s Included in the Kit?
- 1 x Female Wet-Line Quick Coupler (1″ NPT)
- 1 x Male Wet-Line Quick Coupler (1″ NPT)
Complete, ready-to-use hydraulic coupling solution for heavy-duty applications.
