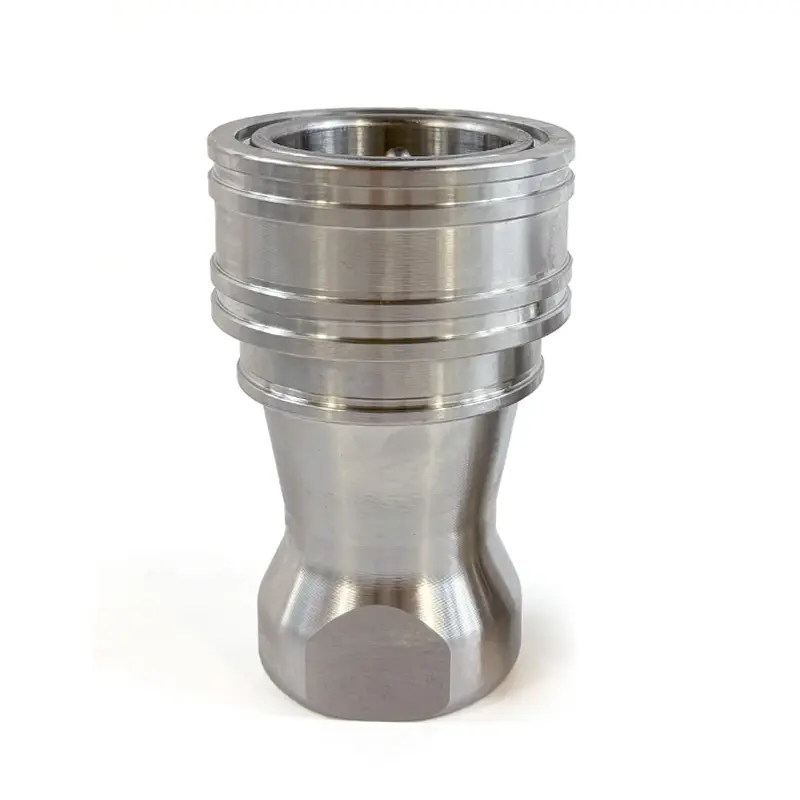

1″ NPT Stainless Steel ISO 7241-B Female Quick Disconnect Coupler
Heavy-Duty, Corrosion-Resistant Hydraulic Coupler for High-Flow Applications
SKU: BSS1F-16N
The ISO 7241-B Series 1″ NPT Female Quick Disconnect Coupler is engineered for high-performance hydraulic systems in demanding industries such as aerospace, automotive, marine, and industrial machinery. Made from premium 316 or 304 stainless steel, this coupler delivers exceptional durability and resistance to harsh environments, ensuring long-lasting reliability in extreme conditions.
This female coupler is designed for secure, quick connections, and is fully interchangeable with all ISO 7241-B series couplings. A complete set (male and female coupler) is also available.
Key Benefits:
- 316 or 304 Stainless Steel Body – Superior corrosion resistance, ideal for marine, chemical, and high-pressure hydraulic applications.
- Self-Sealing Poppet Valve – Prevents leaks and ensures efficient fluid control under both high and low pressures.
- ISO 7241-B Standard Compatibility – Universal interchangeability with all ISO 7241-B series couplers.
- Viton® (FKM) Seals – Offers excellent resistance to high temperatures, hydraulic fluids, and chemicals.
- Extreme Pressure & Temperature Tolerance – 3,600 PSI working pressure, 14,500 PSI burst pressure (coupled).
- Manual Sleeve Locking Mechanism – Ensures quick, secure connections and disconnections.
- Temperature Range: -15°F to +400°F – Delivers consistent performance in extreme conditions.
Specifications:
- Body Size: 1″
- Thread Type: NPT
- Thread Size: 1″
- Material: 316 or 304 Stainless Steel
- Locking Type: Sleeve
- Seal Material: Viton® (FKM)
- Working Pressure: 3,600 PSI
- Burst Pressure (Coupled): 14,500 PSI
- Nominal Flow Rate: 50 GPM
- Maximum Flow Rate: 68 GPM
- Female Face Diameter: 2.52” (64mm)
- Female Length: 4.11” (104.4mm)
- Hex Size: 1.60” (40.6mm)
- Weight: 2.11 lbs
316 Stainless Steel Variant – Interchangeable With:
| Manufacturer | Female Coupler |
|---|---|
| SUMMIT | BSS1F-16N |
| Parker 60 Series | SSH8-62Y |
| Safeway SS10 Series | SS105-8 |
| Faster HNV Stainless Steel</strong > | HNV 1 NPT F 2V |
| Snap-Tite 72 Series | SS72C16-16F |
| Stucchi IRBX Series | F IRBX100 NPT |
| Dixon H-Series | 8HF8-SS |
| Eaton HK Series | LL8HP36 |
| DNP HNV Series | HNV-SS316-16-16-C-NPT |
What’s Included?
- 1 x 1″ NPT Stainless Steel Female Coupler
This ISO 7241-B 1” Stainless Steel Female Quick Disconnect Coupler is designed for durability and peak performance in high-pressure hydraulic systems.
