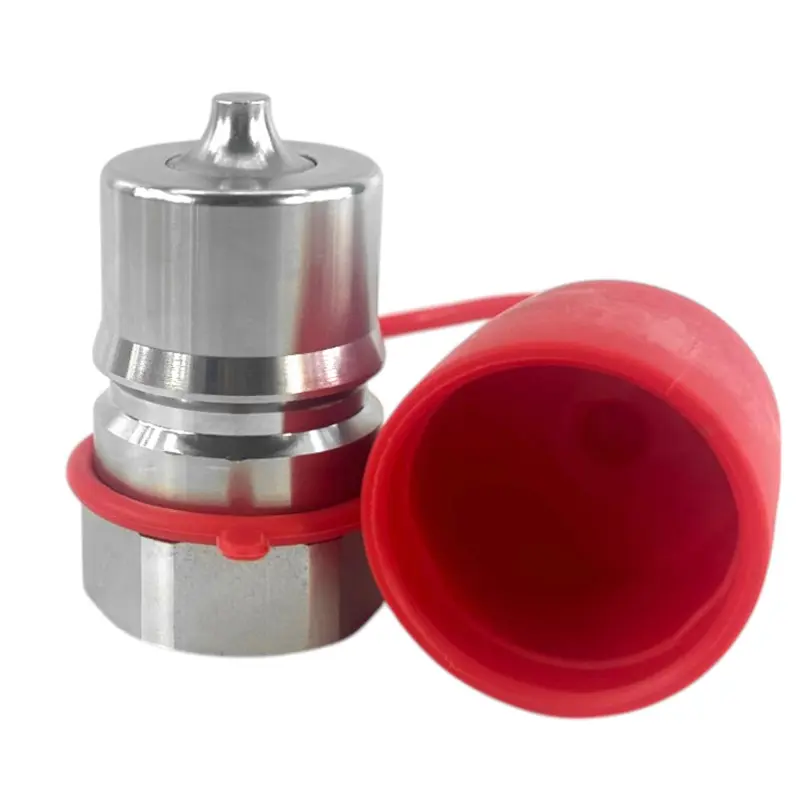

1″ NPT ISO 7241-B Quick Disconnect Hydraulic Male Coupler

1″ ISO 7241-B Quick Coupler – Male (1″ NPT Thread)

• SKU: B1M-16N
• ISO Standard: 7241-B
• Body Size: 1″
• Thread Type: NPT
• Thread Size: 1″
• Coupling Type: Male Coupler
• Body Material: Hardened Steel

Heavy-Duty Hydraulic Quick Coupler for High-Performance Applications

The B1M-16N quick disconnect coupler is engineered to ISO 7241-B standards, ensuring full compatibility with all standard ISO 7241-B hydraulic couplings. Made from hardened steel with a self-sealing poppet valve and radial locking balls, this male coupler provides secure, leak-proof connections under both high and low pressure conditions.

Ideal for industrial machinery, mobile hydraulics, machine tools, aerospace, and automotive applications, this coupler is built for maximum durability and efficiency in demanding environments.

Key Features & Benefits:

• ISO 7241-B Interchangeable – Works with all standard ISO 7241-B couplings
• Hardened Steel Construction – Ensures superior strength and longevity
• Corrosion-Resistant ZN-Fe (CRIII) Plating – Protects against rust and wear
• Leak-Proof Sealing – Self-sealing poppet valve prevents leaks under varying pressures
• High Flow Rate – 50 GPM nominal flow rate, 68.68 GPM max flow
• Durable 304 Stainless Steel Spring – Provides long-lasting performance
• Wide Temperature Range – Operates from -15°F to +400°F
• Radial Locking Balls – Ensures secure coupling under high loads

Technical Specifications:

• Body Material: Hardened Steel
• Finish: ZN-Fe (CRIII) Plating
• Spring Material: 304 Stainless Steel
• Seal Material: NBR (Buna-N)
• Max Working Pressure: 2,000 PSI
• Nominal Flow Rate: 50 GPM
• Max Flow Rate: 68.68 GPM
• Locking Type: Ball Lock
• Temperature Range: -15°F to +400°F

Dimensions:

Male Coupler:

• Face Diameter: 1.46” (65mm)
• Length: 2.9” (105mm)
• Hex Size: 1.60” (40.6mm)

Interchangeable With:
