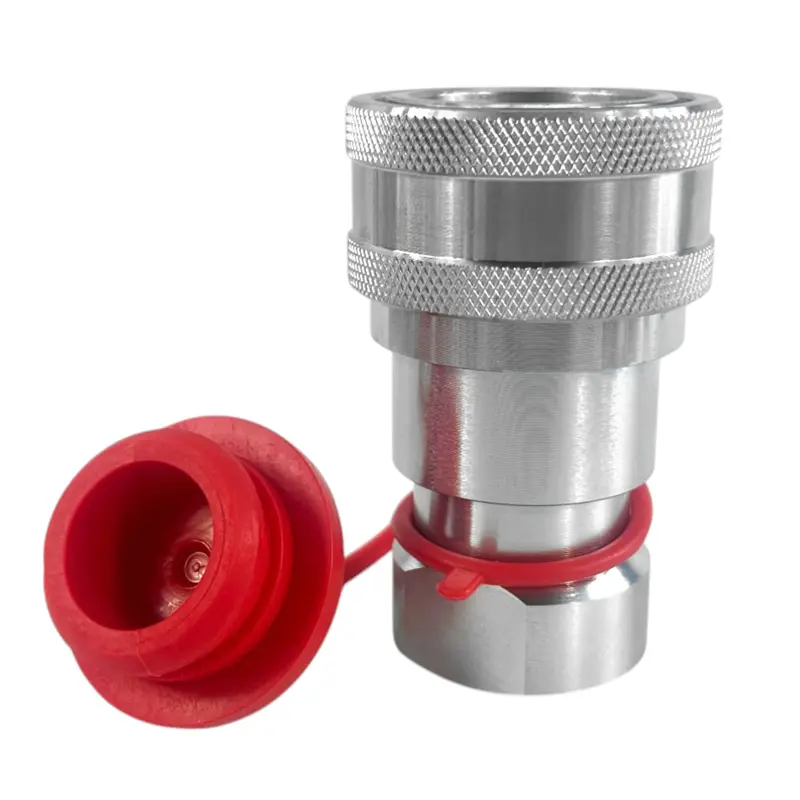

1″ ISO 7241-B Quick Coupler – Female (NPT Thread)
- SKU: B1F-16N
- ISO Standard: 7241-B
- Body Size: 1″
- Thread Type: NPT
- Thread Size: 1″
- Coupling Type: Female Coupler
- Body Material: Hardened Steel
High-Performance Hydraulic Quick Coupler
The B1F-16N quick disconnect coupler is engineered to meet the ISO 7241-B standard, ensuring seamless compatibility with a wide range of hydraulic applications, including aerospace, automotive, electronics, machine tools, mobile hydraulics, and general industrial equipment. Designed for high flow rates and durability, this coupler features a self-sealing poppet valve for reliable performance under high and low pressures.
Key Features & Benefits:
- ISO 7241-B Interchangeable – Compatible with all standard ISO 7241-B couplings
- High-Quality Construction – Carbon steel body with ZN-Fe (CRIII) plating for enhanced corrosion resistance
- Reliable Sealing – Self-sealing poppet valve prevents leaks and ensures excellent pressure retention
- Radial Locking Balls – Provides a secure and reliable connection
- High-Pressure Rated – 2,000 PSI working pressure for demanding hydraulic applications
- Superior Flow Performance – 50 GPM nominal flow rate, with a max flow rate of 68.68 GPM
- NBR Standard Seals – Offers great oil and temperature resistance (-15°F to +400°F)
- 304 Stainless Steel Spring – Prevents corrosion and ensures long-term durability
Technical Specifications:
- Body Material: Hardened Steel
- Finish: ZN-Fe (CRIII) Plating
- Spring Material: 304 Stainless Steel
- Seal Material: NBR (Buna-N)
- Max Working Pressure: 2,000 PSI
- Nominal Flow Rate: 50 GPM
- Max Flow Rate: 68.68 GPM
- Locking Type: Ball Lock
Dimensions:
Female Coupler:
- Face Diameter: 2.52” (64mm)
- Length: 4.11” (104.4mm)
- Hex: 1.60” (40.6mm)
Cross Reference (Interchangeable With):
| Manufacturer | Male | Female |
|---|---|---|
| SUMMIT | BB1M-16N | BB1F-16N |
| Parker 60 Series | BH8-61 | BH8-60 |
| Safeway BS10 Series | BS101-8 | BS105-8 |
| Faster HNV Brass | HNV 1 NPT M 5V | HNV 1 NPT F 5V |
| Snap-Tite 72 Series | B72N16-16F | B72C16-16F |
| Stucchi IRBO Series | M IRBO100 NPT (804501111) | F IRBO100 NPT (804501110) |
| Dixon H-Series | H8F8-B | 8HF8-B |
| Eaton HK Series | B8KP36 | B8HP36 |
| DNP HNV Series | HNV-B-16-16-N-NPT | HNV-B-16-16-C-NPT |
What’s Included?
- 1 x Female Quick Coupler
Product Details:
- ISO Standard: 7241-B
- Style: ISO 7241-B Flat Face
- Body Size: 1″
- Thread Type: NPT
- Thread Size: 1″
- Body Material: Hardened Steel
- Locking Type: Ball Lock
- Weight: 1 lbs
- Brand: AKSpare
Ideal For:
- Hydraulic Systems in Aerospace, Automotive, Electronics, and Industrial Applications
- Heavy-Duty Hydraulic Equipment with High Flow Requirements
- Mobile Hydraulics & General-Purpose Machinery
