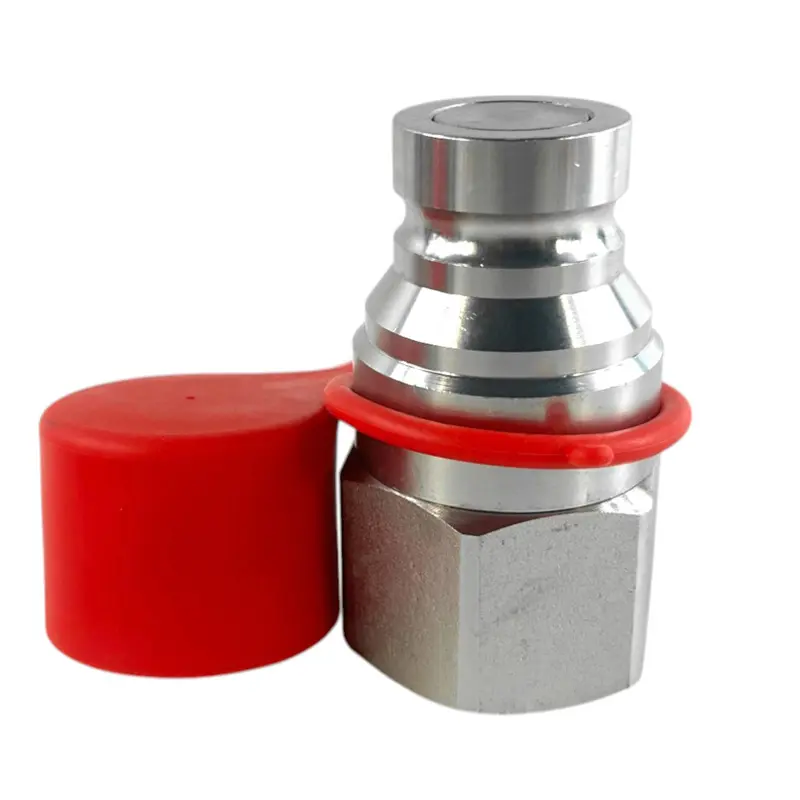

1″ Flat Face Hydraulic Quick Connect Male Coupler – 1″ SAE Thread
SKU: FF-25 M SAE1
The 1″ Flat Face Hydraulic Quick Connect Male Coupler with 1″ SAE threading is engineered for high-flow hydraulic applications where efficiency, durability, and leak prevention are critical. Designed to meet ISO 16028 standards, this coupler is interchangeable with other industry-standard flat face hydraulic couplings, making it an excellent choice for agriculture, construction, and heavy machinery.
Key Benefits:
- Flush Face Valve Design – Minimizes fluid loss and air inclusion, keeping your system clean and efficient.
- Trivalent Zinc Plating – Delivers exceptional corrosion resistance, prolonging service life.
- Hardened Steel Construction – Provides rugged durability with reinforced sleeves for long-lasting performance.
- Low Pressure Drop – Ensures maximum hydraulic flow efficiency.
- Single-Handed Push-Connect Design – Enables quick and effortless coupling.
- Blowout-Resistant Nipple Seal – Enhances safety and prevents leaks.
- ISO 16028 Compatibility – Ensures interchangeability with other major brands.
Technical Specifications:
- Max Pressure Rating: 5,076 PSI
- Max Flow Rate: 74 GPM
- Nominal Flow Rate: 50 GPM
- Seal Material: Buna-N with Teflon backup ring (operates up to 250°F)
- Male Face Diameter: 1.42” (36mm)
- Male Length: 3.74” (95mm)
- Hex Size: 1.97” (50mm)
- Thread Type: 1″ SAE
- Body Size: 1”
- Body Material: Hardened Steel with Trivalent Zinc Plating
- Style: Flat Face Hydraulic Coupler
Interchangeable With:
| Manufacturer | Male Model |
|---|---|
| AKSpare | FF-25 M SAE1 |
| Parker FE Series | FEM-1002-16FO |
| Faster FFH Series | FFH16 1SAE M |
| Eaton Aeroquip FD89 | FD89-1004-16-12 |
| Snap Tite 74 Series | 74N16-16EF |
| Stucchi FIRG Series | 801304039 |
| DNP PLT4 Series | FF-HPG-16-16N-SAE |
Kit Includes:
- 1 Male Coupler
- 1 Male Dust Cap
