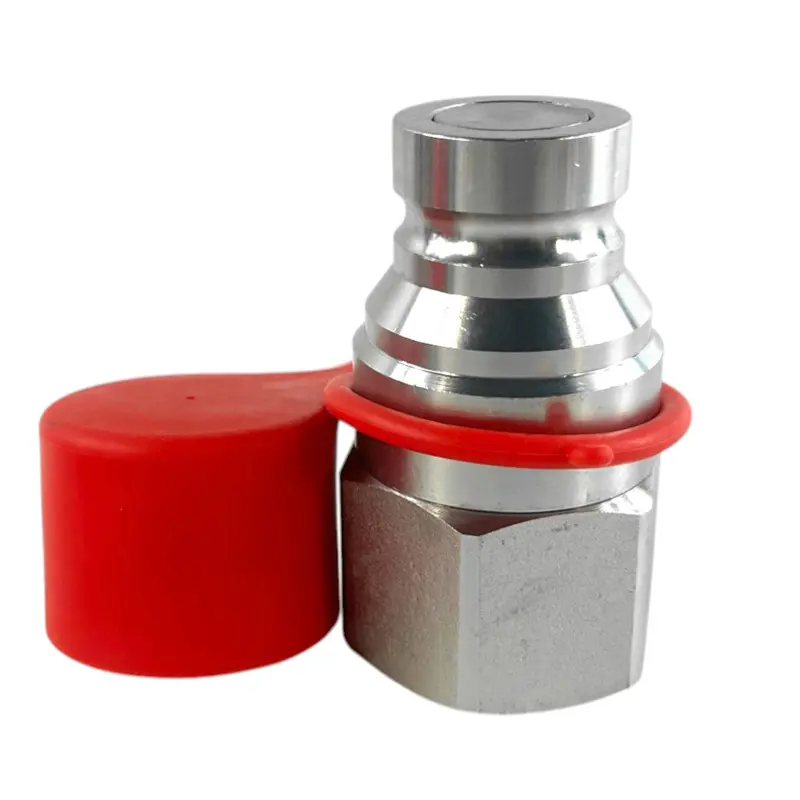

1″ Flat Face Hydraulic Quick Connect Male Coupler – 1″ NPT Thread
SKU: FF-25 M NPT1
The 1″ Flat Face Hydraulic Quick Connect Male Coupler with 1″ NPT threading is designed for high-performance hydraulic systems, ensuring minimal fluid loss, superior durability, and easy one-handed operation. Built to meet ISO 16028 standards, this coupler is interchangeable with other flat face hydraulic couplings, making it ideal for agriculture, construction, industrial equipment, and heavy machinery.
Key Benefits:
- Flush Face Valve Design – Reduces fluid loss and air inclusion, improving system efficiency.
- Trivalent Zinc Plating – Offers exceptional corrosion resistance, extending service life.
- Hardened Steel Construction – Provides high durability with a reinforced sleeve for longevity.
- Low Pressure Drop Design – Ensures optimal hydraulic flow.
- Single-Handed Push-Connect – Allows for quick and effortless coupling.
- Blowout-Resistant Nipple Seal – Prevents leaks and enhances safety.
- ISO 16028 Interchangeability – Compatible with multiple industry-standard couplings.
Technical Specifications:
- Max Pressure Rating: 5,076 PSI
- Max Flow Rate: 74 GPM
- Nominal Flow Rate: 50 GPM
- Seal Material: Buna-N with Teflon backup ring (operates up to 250°F)
- Male Face Diameter: 1.42” (36mm)
- Male Length: 3.74” (95mm)
- Hex Size: 1.97” (50mm)
- Thread Type: 1″ NPT
- Body Size: 1”
- Body Material: Hardened Steel with Trivalent Zinc Plating
- Style: Flat Face Hydraulic Coupler
Interchangeable With:
| Manufacturer | Male Model |
|---|---|
| AKSpare | FF-25 M NPT1 |
| Parker FE Series | FEM-1002-16FP |
| Safeway FFE49 Series | FFE491-8 |
| Faster FFH Series | FFH16 1NPT M |
| Eaton Aeroquip FD89 | FD89-1002-16-12 |
| Snap Tite 74 Series | 74N16-16F |
| Stucchi FIRG Series | 801301029 |
| DNP PLT4 Series | FF-HPG-16-16N-NPT |
