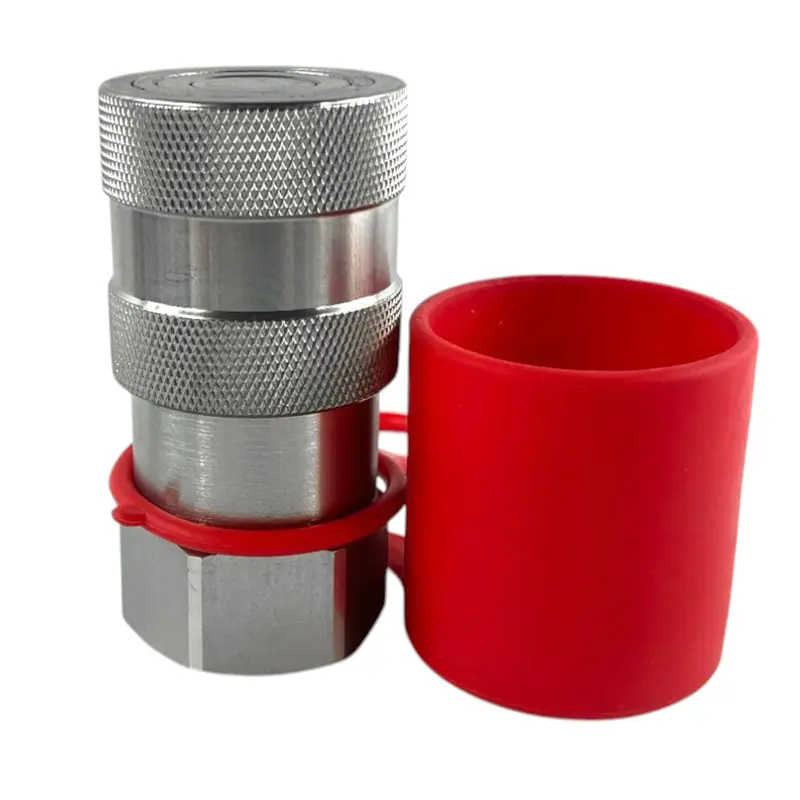

1″ Flat Face High Flow Hydraulic Quick Connect Female Coupler, 1″ SAE Thread

1″ Flat Face Hydraulic Quick Connect Female Coupler – 1″ SAE

SKU: FF1F-16S

The 1″ Flat Face Hydraulic Quick Connect Female Coupler with a 1″ SAE thread is built for high-performance hydraulic connections in demanding industrial and heavy-duty applications. Featuring a flush face valve design, this coupler minimizes fluid loss and air contamination, ensuring cleaner and more efficient hydraulic operations.

Constructed from hardened steel with zinc-nickel plating, it provides exceptional strength and corrosion resistance. The locking sleeve helps prevent accidental disconnections, while the nipple seal resists blowouts, enhancing safety and reliability.

Designed to be fully interchangeable with ISO 16028 standard couplers, this female coupler works seamlessly with a wide range of hydraulic systems.

Key Benefits:

• Hardened Steel Construction – Ensures durability in harsh conditions.
• Zinc-Nickel Plating – Provides superior corrosion resistance.
• Flush Face Valve Design – Reduces fluid loss and contamination.
• Minimal Pressure Drop – Enhances hydraulic efficiency.
• Locking Sleeve Mechanism – Prevents accidental disconnections.
• Blowout-Resistant Nipple Seal – Offers leak-free performance.
• ISO 16028 Compatibility – Interchangeable with other flat face couplers.

Technical Specifications:

• Max Pressure Rating: 5,076 PSI
• Max Flow Rate: 74 GPM
• Nominal Flow Rate: 50 GPM
• Buna-N Seals with Teflon backup ring (operates up to 250°F)
• Female Face Diameter: 2.17” (55mm)
• Female Length: 4.31” (109mm)
• Hex Size: 1.97” (50mm)
• Thread Type: SAE/ORB
• Thread Size: 1”
• Body Size: 1”
• Body Material: Hardened Steel
