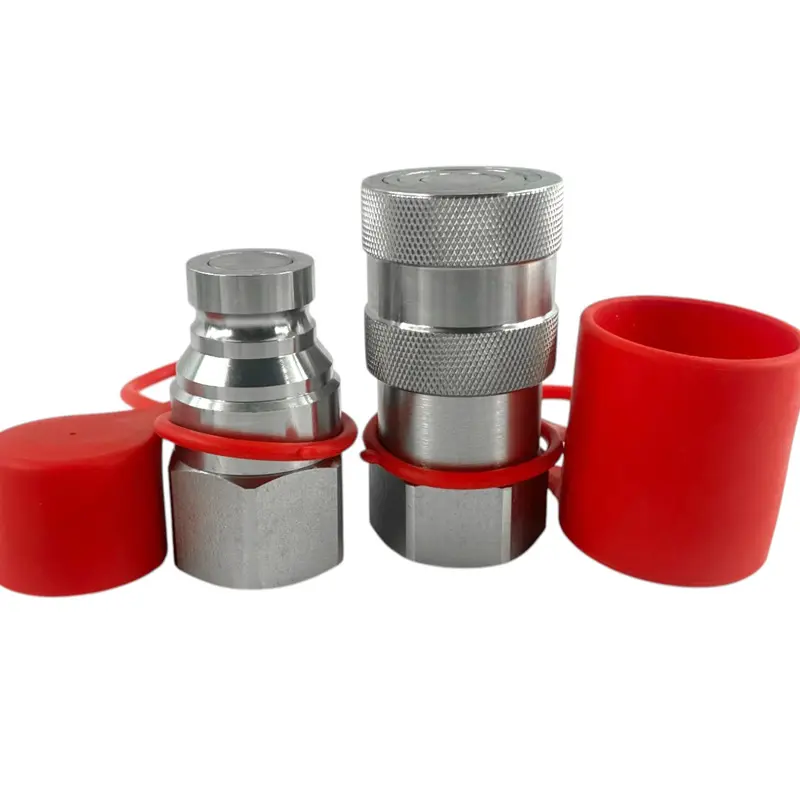

1″ Flat Face Hydraulic Quick Coupler Set – 1″ NPT Thread
SKU: FF-25 NPT1
This 1″ Flat Face Hydraulic Quick Coupler Set includes both a male and female coupler, offering reliable, high-performance connections for hydraulic systems. Built with hardened steel and anti-corrosive plating, this set is designed to withstand tough working conditions in agriculture, construction, mining, and industrial applications.
With a flush face valve design, it minimizes fluid loss and air inclusion, ensuring clean, efficient operation. The locking sleeve prevents accidental disconnections, and the compact, high-flow design allows for easy one-hand operation.
Key Features:
- Heavy-Duty Design – Rated for 5,076 PSI, ensuring durability in high-pressure applications.
- High Flow Performance – Supports up to 73.97 GPM, maximizing hydraulic efficiency.
- Flush Face Valve Design – Reduces fluid loss and prevents contamination.
- Hardened Steel Construction – Provides exceptional strength and longevity.
- Locking Sleeve – Prevents accidental disconnections for added safety.
- Minimal Pressure Drop – Optimized valve design for smooth fluid transfer.
- Temperature-Resistant Seals – Rated for operating temperatures up to 250°F.
Cross Reference Guide:
| Manufacturer | Male | Female |
|---|---|---|
| AKSpare | FF-25 M NPT1 | FF-25 F NPT1 |
| Parker FE Series | FEM-1002-16FP | FEM-1001-16FP |
| Safeway FFE49 Series | FFE491-8 | FFE495-8 |
| Faster FFH Series | FFH16 1NPT M | FFH16 1NPT F |
| Eaton Aeroquip FD89 | FD89-1002-16-12 | FD89-1001-16-12 |
| Snap-Tite 74 Series | 74N16-16F | 74C16-16F |
| Stucchi FIRG Series | 801301029 | 801301028 |
| DNP PLT4 Series | FF-HPG-16-16N-NPT | FF-HPG-16-16C-NPT |
Kit Includes:
- 1 Female Coupler
- 1 Male Nipple
- 1 Female Dust Cap
- 1 Male Dust Cap
This heavy-duty quick coupler set provides a secure, efficient, and high-flow hydraulic connection in demanding environments.
