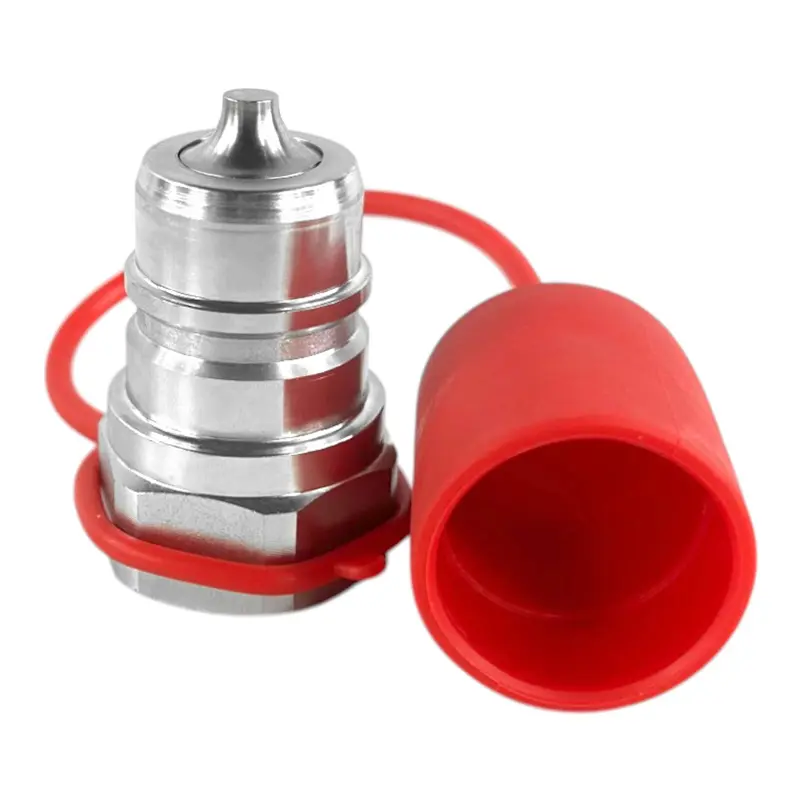

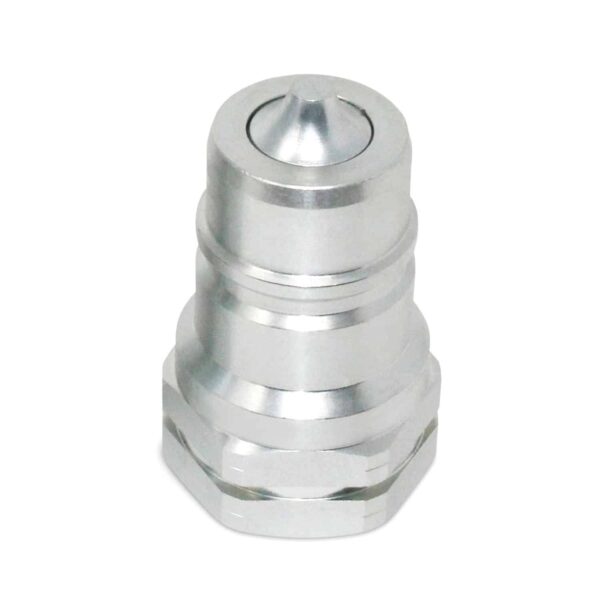

1″ ISO 5675 Agricultural Hydraulic Quick Coupler – 1″ NPT (Male)
SKU: AG1M-16N
The AG1M-16N Quick Coupler (Male) is a high-performance hydraulic connector designed for agriculture, construction, and logging applications. This 1″ NPT coupler meets ISO 5675 standards, ensuring full interchangeability with other standard hydraulic couplings, including poppet seal, ball seat valve, and push-pull couplers.
Engineered with hardened steel and a radial locking ball mechanism, this coupler provides secure connections, leak prevention, and easy single-handed operation. With a 5100 PSI pressure rating and a maximum flow rate of 66 GPM, it delivers reliable performance in demanding hydraulic applications.
Key Benefits & Features
- ISO 5675 Standard – Fully interchangeable with other agricultural quick couplers
- High-Pressure Rating – 5100 PSI working pressure for superior durability
- Optimized Flow Performance – Nominal flow of 50 GPM, with a max flow of 66 GPM
- Durable Construction – Hardened steel body for longevity and resistance to wear
- Secure Locking Mechanism – Radial locking balls provide a tight, leak-proof connection
- Manual Connect & Disconnect – Easy single-handed push-connect design
- Blowout-Resistant Seal – Nipple seal prevents hydraulic fluid leaks
- Versatile Use – Compatible with tractors, skid steers, forestry, and construction equipment
Applications
- Tractors & Farm Equipment
- Construction Machinery
- Logging & Forestry Equipment
- Hydraulic Implements & Attachments
- Skid Steers & Loaders
- Excavators & Heavy Equipment
Specifications
- ISO Standard: 5675
- Thread Type: NPT
- Thread Size: 1″
- Body Size: 1″
- Max Operating Pressure: 5,100 PSI
- Nominal Flow Rate: 50 GPM
- Maximum Flow Rate: 66 GPM
- Locking Mechanism: Sleeve with radial locking balls
- Valve Type: Poppet (agriculture style)
- Material: Hardened Steel
- Sealing Type: Blowout-resistant nipple seal
Dimensions:
- Male Face Diameter: 2.047” (52mm)
- Male Length: 2.578” (65mm)
- Hex Size: 1.617” (41mm)
- Weight: Approx. 1 lb
Interchangeable With:
| Manufacturer | Male Coupler |
|---|---|
| SUMMIT | AG1M-16N |
| Parker 4000 Series | 4010-6P |
| Safeway S20 Series | S21-8P |
| Faster NV/NS Series | NV 1 NPT M |
| Stucchi IRV Series | 800101007 (M IR100V NPT) |
| Dixon AG Series | AG8F8-PV |
What’s Included?
- 1 x Male 1” NPT Hydraulic Quick Coupler
Designed for durability, seamless hydraulic connections, and high-performance operation in tough working conditions.
