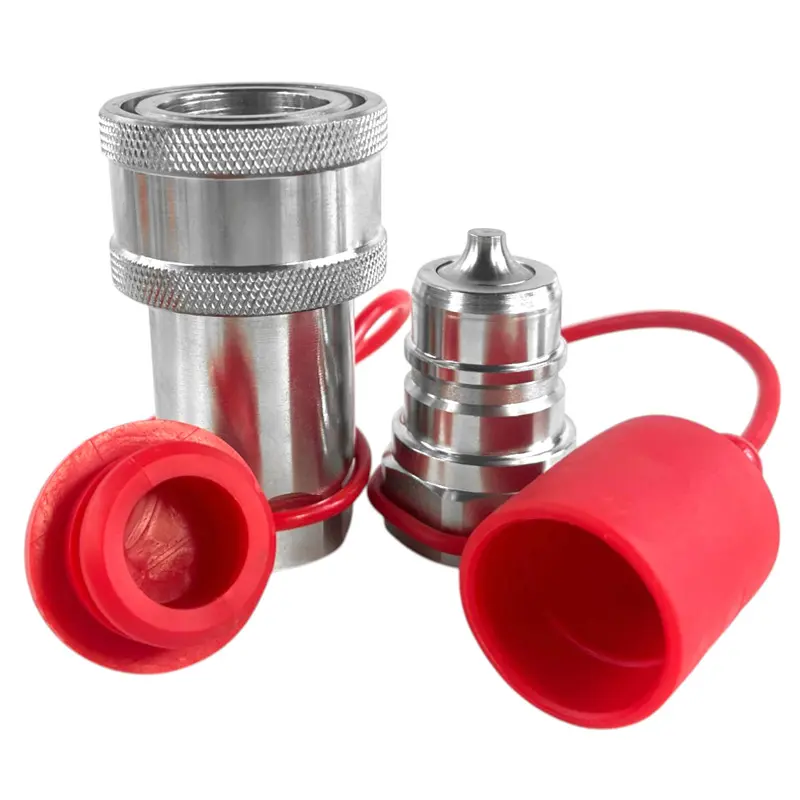

1″ Ag Hydraulic Quick Connect Coupler Set, 1″ NPT Thread

1″ ISO 5675 Agricultural Hydraulic Quick Coupler Set – 1″ NPT (Male & Female)

SKU: AG1-16N-SET

The AG1-16N-SET Quick Coupler Set is designed for agriculture, construction, and logging applications, where reliable, high-flow hydraulic connections are essential. These 1” NPT couplers meet ISO 5675 standards, making them fully interchangeable with other brands following the same standard, including poppet seal, ball seat valve, and push-pull couplings.

This set includes both a male and female quick coupler, providing a complete solution for hydraulic connections. With a 3600 PSI pressure rating and a maximum flow rate of 66 GPM, these couplers ensure secure and efficient hydraulic performance in demanding environments.

Key Features & Benefits

• ISO 5675 Standard – Fully interchangeable with other agricultural quick couplers
• High-Pressure Rating – 3600 PSI working pressure ensures reliable operation
• Optimized Flow Performance – Nominal flow of 50 GPM, with a max flow of 66 GPM
• Durable Construction – Hardened steel plugs withstand harsh working conditions
• Secure Locking Mechanism – Sleeve locking system for easy and reliable connections
• Buna-N Seals with Teflon Backup – Withstands temperatures up to 250°F, preventing leaks
• Versatile Use – Compatible with agriculture, forestry, and construction machinery

Applications

• Tractors & Farm Equipment
• Construction Machinery
• Logging & Forestry Equipment
• Hydraulic Implements & Attachments
• Skid Steers & Loaders
• Excavators & Heavy Equipment

Specifications

• ISO Standard: 5675
• Thread Type: NPT
• Thread Size: 1″
• Body Size: 1″
• Max Operating Pressure: 3,600 PSI
• Nominal Flow Rate: 50 GPM
• Maximum Flow Rate: 66 GPM
• Seal Type: Buna-N with Teflon Backup
• Valve Type: Poppet
• Locking Mechanism: Sleeve
• Material: Hardened Steel

Dimensions:

• Female Length: 3.897”
• Male Length: 2.578”
• Coupled Length: 5.16”
• Hex Size: 1.617”
• Weight: 3 lbs

Interchangeable With:
